Industrial Pumps

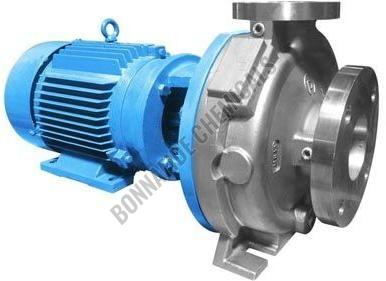

ANSI pumps are centrifugal process pumps that meet the standards of the American National Standards Institute (ANSI). By definition, these chemical pumps are horizontal, end suction single stage, centerline discharge, centrifugal pumps comparable in size and dimensions regardless of pump manufacturer.

A centrifugal pump is a mechanical device designed to move a fluid by means of the transfer of rotational energy from one or more driven rotors, called impellers. Fluid enters the rapidly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller's vane tips.

A Pump is generally used to induce flow or raise the pressure of a liquid. Centrifugal pumps are a category of Dynamic pumps. The working principle of centrifugal pumps involves imparting energy to the liquid by means of a centrifugal force developed by the rotation of an impeller that has several blades or vanes.

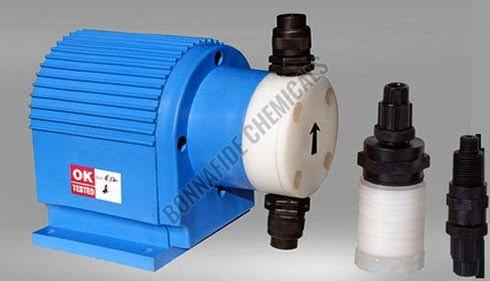

Dosing pump, system, and valve specifications include flow rate (LPH – liters per hour) and pressure (Bar or kg/cm²), with materials like PVDF, PTFE, SS316, and PP for chemical compatibility. Key specifications also include the material of construction (MOC) for wetted parts, the power supply (voltage, frequency, power consumption), automation grade (manual or automatic), and specialized features like pressure relief valves, anti-syphon valves, and diaphragm rupture indicators.

A gear pump is a type of positive displacement (PD) pump. It moves a fluid by repeatedly enclosing a fixed volume using interlocking cogs or gears, transferring it mechanically using a cyclic pumping action. It delivers a smooth pulse-free flow proportional to the rotational speed of its gears.

Diaphragm metering pumps excel at pumping clean, aggressive chemicals into high-pressure systems, and require very little maintenance. A variety of wetted parts are available for chemical resistance.

The diaphragms work as a separation wall between the air and the liquid. ... The suction ball valve is pushed away off its seat allowing the fluid to flow past the ball valve into the liquid chamber.

Lobe pumps are similar to external gear pumps in operation in that fluid flows around the interior of the casing. ... As the lobes come out of mesh, they create expanding volume on the inlet side of the pump. Liquid flows into the cavity and is trapped by the lobes as they rotate.

Lobe Pumps are self-priming , valveless, positive displacement pumps. ... This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area.

Lobe pumps are designed so the rotor does not touch any part of the housing. This allows the pump to run dry with only a small increase in temperature and without the risk of damage to any part of the unit.

The mechanically-actuated-diaphragm-pumps work as a separation wall between the air and the liquid. ... The suction ball valve is pushed away off its seat allowing the fluid to flow past the ball valve into the liquid chamber.

Slurry pumps are a heavy and robust version of centrifugal pumps, capable of handling tough and abrasive duties. Slurry pumps can be used to move mixtures of liquid and solids in many industries with a broad spectrum of applications such as mine drainage, dredging of settling lagoons and pumping of drilling mud.

A slurry pump is a type of pump designed for pumping liquid containing solid particles. Slurry pumps changes in design and construction to adjust to multiple type of slurry which varies in concentration of solids, size of solid particles, shape of solid particles, and composition of solution.

Vertical turbine pumps are centrifugal pumps specially designed to move water from an underground well or reservoir. They're also known a deep well turbine pumps or a line shaft turbine pumps. While submersible pumps have an electric motor located underwater at the bottom of the pump.

Vertical pumps provide a number of important advantages over horizontal pumps. 1 Space savings – a vertical pump uses 75% less floor space than a horizontal pump with electric motor drive. 2 Steeper head capacity curve - less reduction in capacity with fluctuations in head
