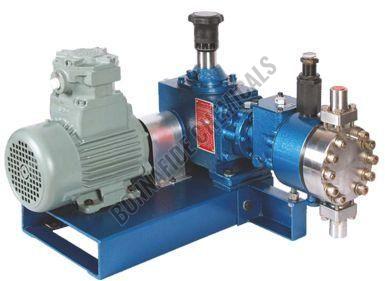

Hydraulic Acuted Diaphragm Pump

Diaphragm metering pumps excel at pumping clean, aggressive chemicals into high-pressure systems, and require very little maintenance. A variety of wetted parts are available for chemical resistance.

The diaphragms work as a separation wall between the air and the liquid. ... The suction ball valve is pushed away off its seat allowing the fluid to flow past the ball valve into the liquid chamber.
